SPECIFICATIONS

Ambient Temperature: -10℃~+40℃

Brand Name: XMSJ,ZX or OEM

Capacity: 1KVA to 30KVA Available

Certificate: CE / ISO9001

Current: Other

Current Type: AC

Display: LCD Screen

Efficiency: ≥90%

High-concerned chemical: None

Input Voltage: 80V-260V Can customized

Model Number: DNB

Origin: Mainland China

Output Voltage: 220V±10%

Phase: Single Phase

Place of Origin: Zhejiang, China

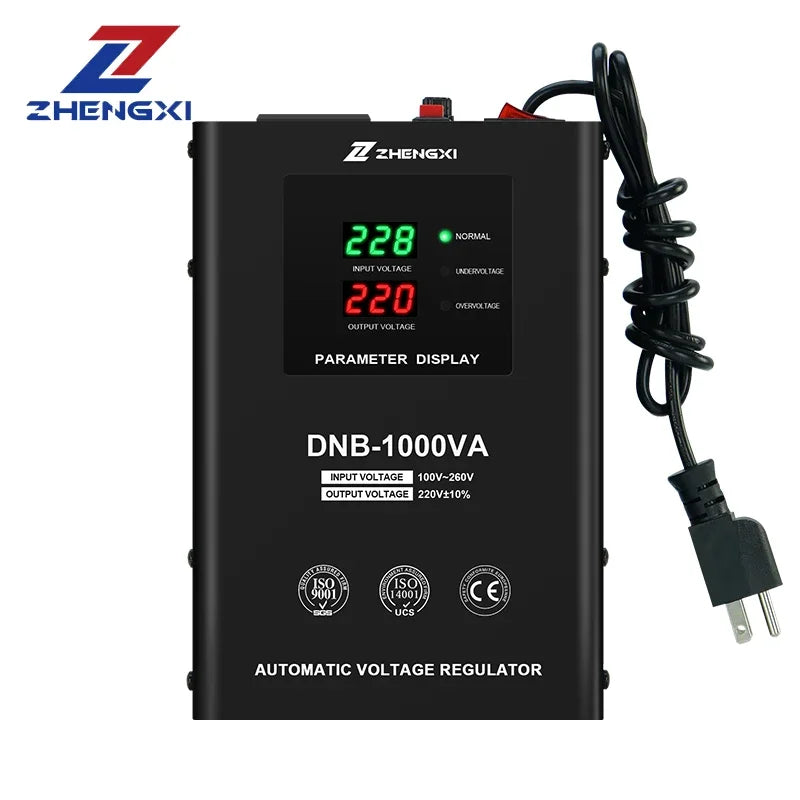

Product Name: Wall Mounted Voltage Regulator

Protection: Over/Under Voltage, Short Circuit, Over Temperature, Phase Failure,etc

Response Time: ≤1S

Use: SVC



Technical Parameters

--

Specification	DNB-1KVA up to 30KVA
Input Voltage	80-260V AC  or customized
Output Voltage	220V AC  or customized
Output Precision	±10%(Adjustable)
Frequency	50/60Hz
Power Factor	80%
Efficiency	>95%
Control Type	Relay Type
Operating Temperature	-10℃~+40℃
Over/Low Volt Protection	YES
Circuit Protection	YES
Digital Display	Show input and output voltage



Product Introduction

--

DNB series automatic AC relay type regulator consists of autotransformer, sampling control board and actuator. When the grid voltage is unstable or the load changes, the automatic sampling control circuit sends out a signal to make the output rated voltage reach a stable state.



Features

--

1.This product has the waveform distortionless,reliable performance,long-term operation and other characteristics

2.With time delay, over-voltage, under-voltage protection and other functions

3.Widely used in the field of electric power which needs to stabilise voltage, it is an ideal voltage stabilisation power supply to ensure the normal operation of your electrical equipment.
